A guardrail post is welded directly to a steel stringer system supporting metal pans with concrete fill greater than 4 inches thick. A draft note requires adding a guard return if the gap allows a 4-inch sphere to pass through. The assembly coordinates stair framing with structural guardrail attachments.

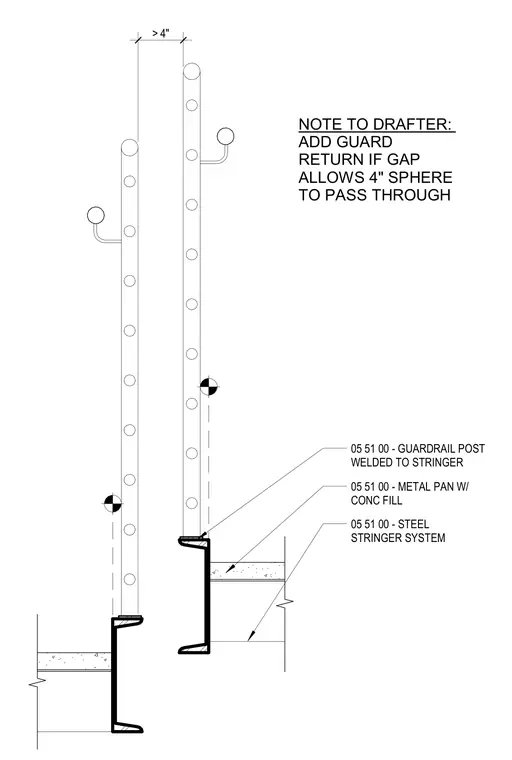

05 51 00 - GUARDRAIL POST WELDED TO STRINGER 05 51 00 - STEEL STRINGER SYSTEM 05 51 00 - METAL PAN W/ CONC FILL > 4" NOTE TO DRAFTER: ADD GUARD RETURN IF GAP ALLOWS 4" SPHERE TO PASS THROUGH
