An upper cabinet light fixture is installed with one-quarter-inch thick metal washer spacers typically provided as shown dotted.

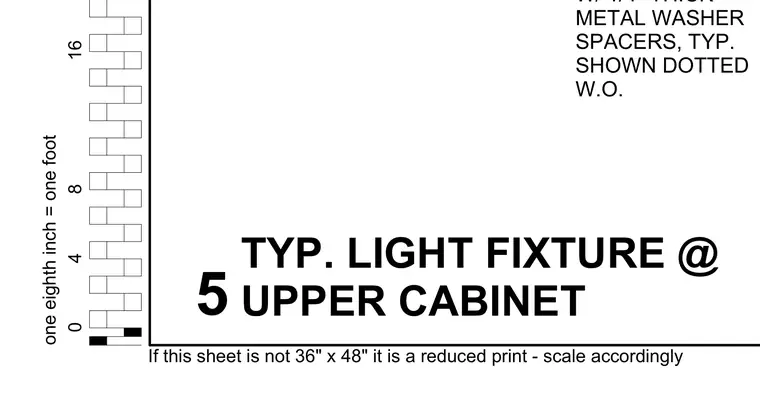

W/ 1/4" THICK METAL WASHER SPACERS, TYP. SHOWN DOTTED W.O. one eighth inch = one foot 16 8 4 0 If this sheet is not 36" x 48" it is a reduced print - scale accordingly 5 TYP. LIGHT FIXTURE @ UPPER CABINET
