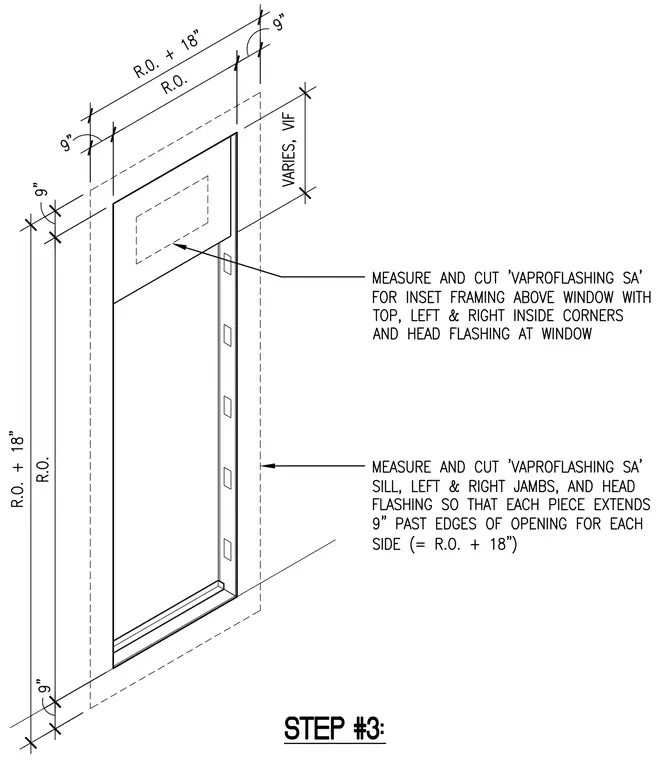

VaproFlashing SA self-adhering membrane is measured and cut for the sill, left jamb, right jamb, and head flashing, extending nine inches past the edges of the rough opening on each side for a total width of rough opening plus eighteen inches. Additional VaproFlashing SA is measured and cut for inset framing above the window, covering top, left, and right inside corners and head flashing at the window.
