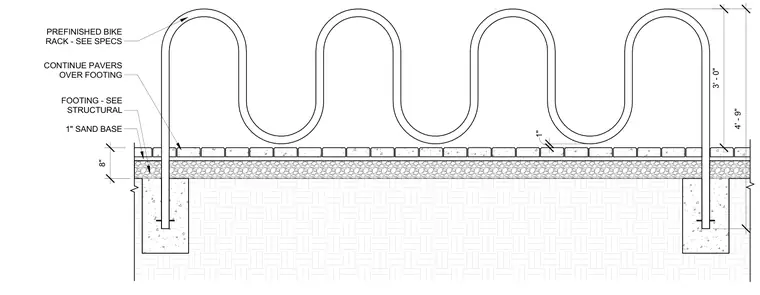

A prefinished bicycle rack is anchored into concrete footings that are sized per structural drawings. The assembly sits below a one-inch sand base and continuous pavers that run directly over the footing. The bicycle rack extends to a total height of four feet nine inches, with the top loop standing three feet above the finished surface.
FOOTING - SEE STRUCTURAL 1" SAND BASE CONTINUE PAVERS OVER FOOTING 4' - 9" PREFINISHED BIKE RACK - SEE SPECS 8" 3' - 0" 1"
