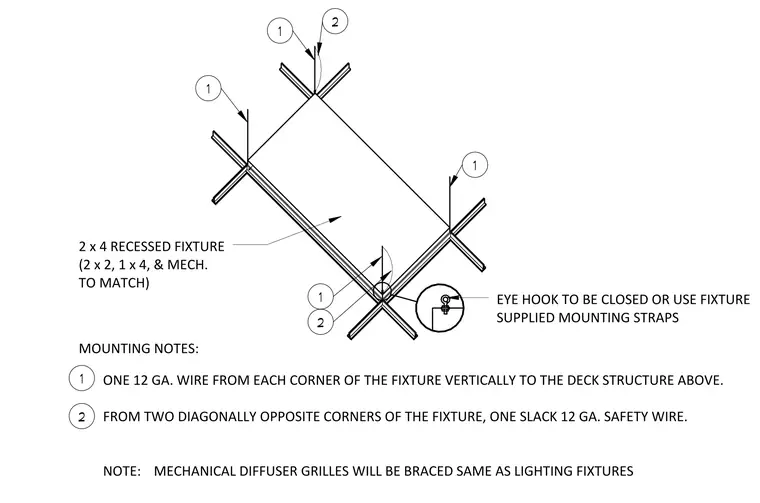

Recessed ceiling fixtures are supported by twelve-gauge vertical support wires extending from each corner of the housing directly to the overhead deck structure. Two diagonally opposite corners receive an additional slack twelve-gauge safety wire for seismic restraint. Eye hooks must be closed or utilize fixture-supplied mounting straps. Mechanical diffuser grilles follow the identical bracing requirements specified for lighting fixtures.
ONE 12 GA. WIRE FROM EACH CORNER OF THE FIXTURE VERTICALLY TO THE DECK STRUCTURE ABOVE. FROM TWO DIAGONALLY OPPOSITE CORNERS OF THE FIXTURE, ONE SLACK 12 GA. SAFETY WIRE. NOTE: MECHANICAL DIFFUSER GRILLES WILL BE BRACED SAME AS LIGHTING FIXTURES MOUNTING NOTES: 2 x 4 RECESSED FIXTURE (2 x 2, 1 x 4, & MECH. TO MATCH) EYE HOOK TO BE CLOSED OR USE FIXTURE SUPPLIED MOUNTING STRAPS 1 2 1 1 1 1 2 2
