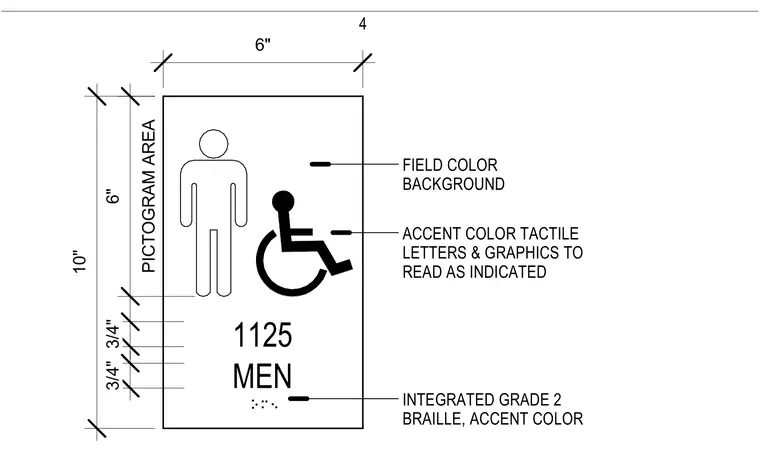

An ADA compliant restroom identification sign features an overall dimension of six inches wide by ten inches high. The layout includes a top pictogram area with a six-inch vertical dimension, alongside text and numbers indicating room 1125 and the word MEN. The sign incorporates a field color background, accent color tactile letters and graphics, and integrated grade 2 braille.
10" 6" MEN 3/4" FIELD COLOR BACKGROUND ACCENT COLOR TACTILE LETTERS & GRAPHICS TO READ AS INDICATED INTEGRATED GRADE 2 BRAILLE, ACCENT COLOR PICTOGRAM AREA 6" 1125 3/4" 4
