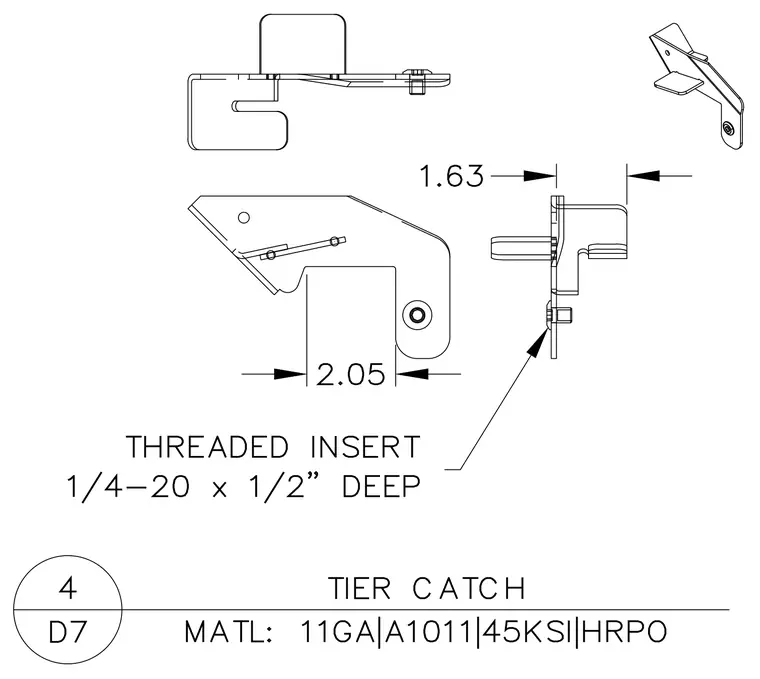

The custom tier catch bracket is fabricated from eleven-gauge ASTM A1011 forty-five KSI hot-rolled pickled and oiled steel sheet metal. A quarter-twenty by half-inch deep threaded insert is secured to the bracket face for mechanical attachment. Dimensions of 2.05 inches and 1.63 inches locate the mounting holes and form the bent bracket geometry.
2.05 1.63 THREADED INSERT 1/4-20 x 1/2" DEEP TIER CATCH 4 D7 MATL: 11GA|A1011|45KSI|HRPO = a ) o E o
