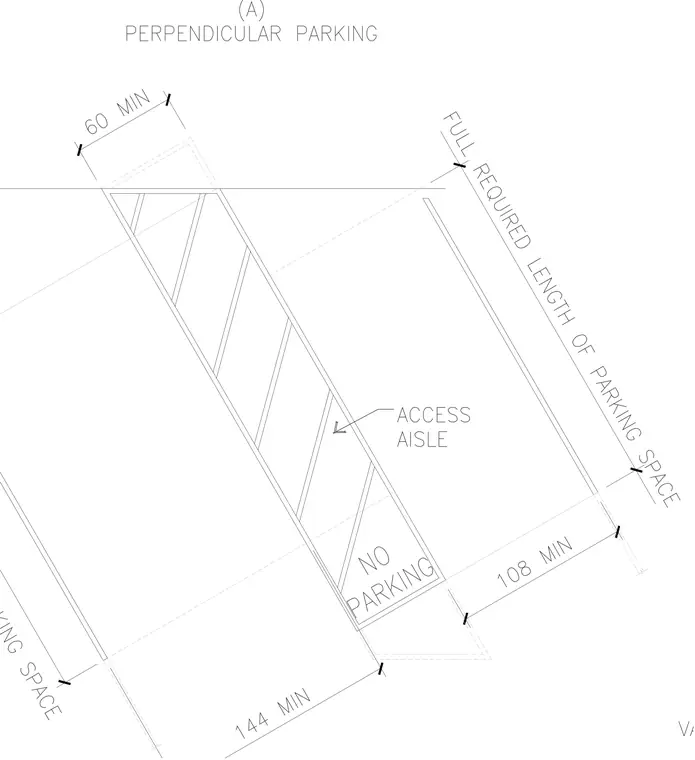

Perpendicular parking space layout with an adjacent striped access aisle and minimum dimensional clearances. The drawing specifies a minimum one hundred eight inch parking space width with an adjacent sixty inch minimum access aisle width. Additional dimensions include a one hundred forty four inch minimum dimension and the full required length of the parking space. Pavement markings indicate no parking within the striped access aisle.
