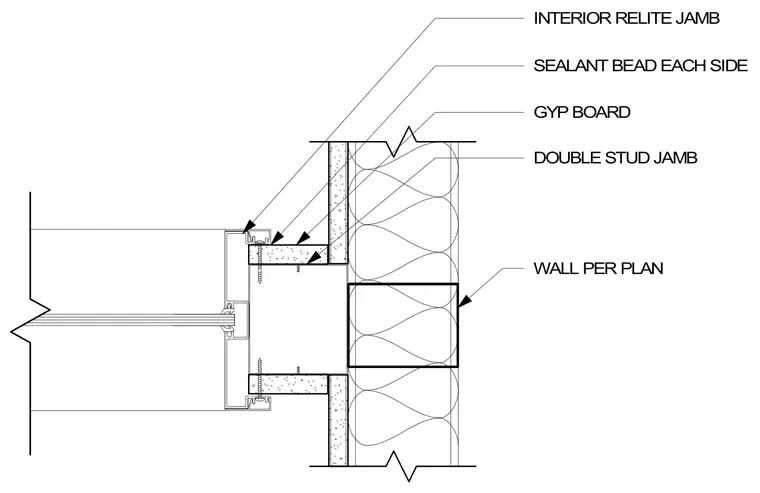

An interior relite frame is installed at a wall opening framed with double wood studs and surfaced with gypsum board. A continuous sealant bead is applied at each side between the frame and the gypsum board finish. The wall construction transitions from the frame jamb into a standard partition wall sized per plan.
INTERIOR RELITE JAMB WALL PER PLAN DOUBLE STUD JAMB GYP BOARD SEALANT BEAD EACH SIDE
