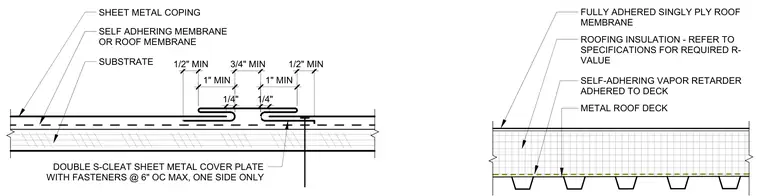

A wide sheet metal coping joint sealed with a double S-cleat cover plate secured by fasteners at a maximum of six inches on center on one side only. The underlying substrate receives a self-adhering membrane or roof membrane beneath the metal coping. The roof assembly consists of a metal roof deck topped by a self-adhering vapor retarder, roofing insulation, and a fully adhered single-ply roof membrane. Dimensional callouts specify clearance gaps and overlap lengths for the sheet metal joint.
SUBSTRATE SELF ADHERING MEMBRANE OR ROOF MEMBRANE DOUBLE S-CLEAT SHEET METAL COVER PLATE WITH FASTENERS @ 6" OC MAX, ONE SIDE ONLY SHEET METAL COPING 1/4" 3/4" MIN 1" MIN 1/4" 1" MIN 1/2" MIN 1/2" MIN METAL ROOF DECK ROOFING INSULATION - REFER TO SPECIFICATIONS FOR REQUIRED R- VALUE SELF-ADHERING VAPOR RETARDER ADHERED TO DECK FULLY ADHERED SINGLY PLY ROOF MEMBRANE
