Architectural · A-5S7WM

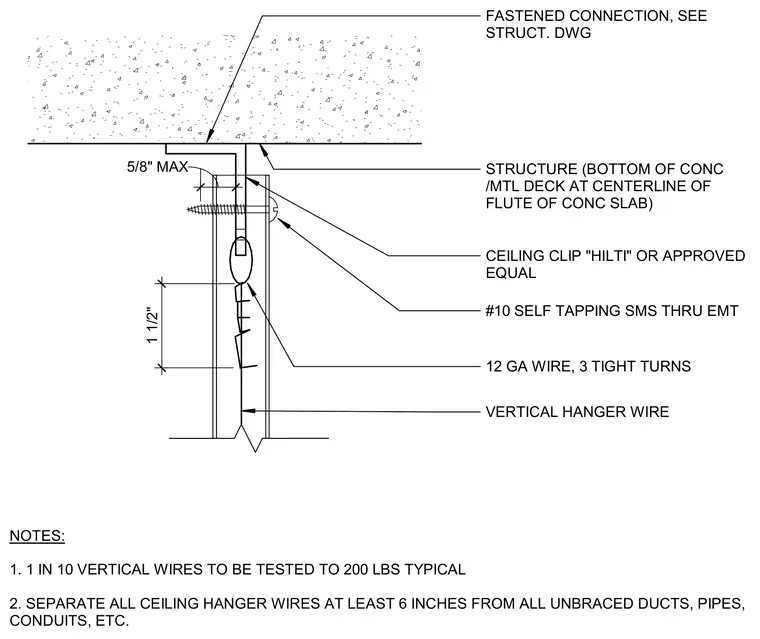

Seismic Bracing Detail for Suspended Ceiling Hanger Wire

Materials

Elements

Ceilings Floors / Slabs Decks Bracing Anchors / Embeds Connections / Plates

About this detail

A ceiling clip anchors to the underside of a concrete and metal deck structure at the centerline of the flute using a fastened connection sized per structural drawings. A number ten self-tapping sheet metal screw passes through the electrical metallic tubing and secures a twelve-gauge vertical hanger wire formed with three tight vertical turns. One in every ten vertical wires requires load testing to two hundred pounds typical. All ceiling hanger wires maintain a minimum separation of six inches from unbraced ducts, pipes, and conduits.
