A rated interior wall terminates at a metal deck with a one-inch deflection space beneath the deflection channel, leaving studs and gypsum board unfastened to the runner. Type X gypsum board is applied to each side of the metal studs spaced at sixteen inches on center, attached one inch below the deflection channel. Fire safing insulation is installed on each side of the wall, overlapping the deck and gypsum board by a minimum of one inch with a clean joint provided at exposed locations. A second layer of Type X gypsum board is added where required for a two-hour fire rating, complying with UL assembly V438.

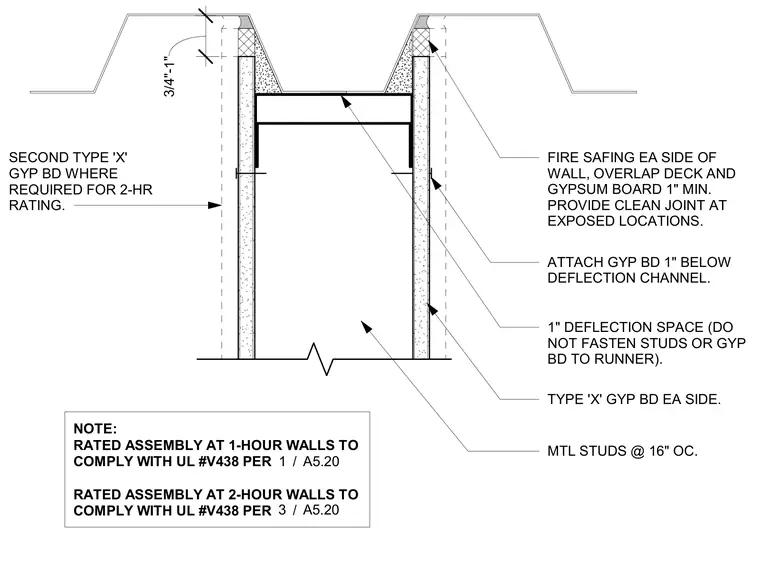

FIRE SAFING EA SIDE OF WALL, OVERLAP DECK AND GYPSUM BOARD 1" MIN. PROVIDE CLEAN JOINT AT EXPOSED LOCATIONS. ATTACH GYP BD 1" BELOW DEFLECTION CHANNEL. 1" DEFLECTION SPACE (DO NOT FASTEN STUDS OR GYP BD TO RUNNER). TYPE 'X' GYP BD EA SIDE. MTL STUDS @ 16" OC. 3/4"-1" NOTE: RATED ASSEMBLY AT 1-HOUR WALLS TO COMPLY WITH UL #V438 PER RATED ASSEMBLY AT 2-HOUR WALLS TO COMPLY WITH UL #V438 PER / 1 A5.20 / 3 A5.20 SECOND TYPE 'X' GYP BD WHERE REQUIRED FOR 2-HR RATING.
