Architectural · A-5S43N

Light Fixture Mounting Bracket at Interior Wall

Materials

anchor

Elements

Walls Anchors / Embeds

Connections

Bolted Connection

About this detail

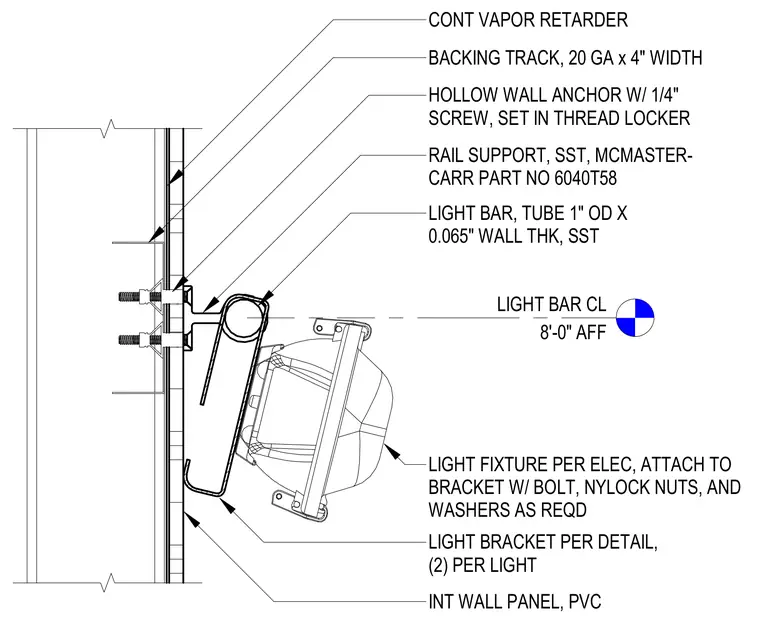

A light fixture mounts to an interior wall panel assembly set at eight feet above finished floor. A twenty gauge four-inch wide metal backing track secures behind the interior PVC wall panel alongside a continuous vapor retarder. A stainless steel rail support fastens through the wall panel using hollow wall anchors with quarter-inch screws set in thread locker. A stainless steel tubular light bar with a one-inch outer diameter and zero-point-zero-sixty-five-inch wall thickness engages the rail support. Two light brackets per light attach to the light bar, supporting the electrical light fixture secured with bolts, nylon lock nuts, and washers as required.
