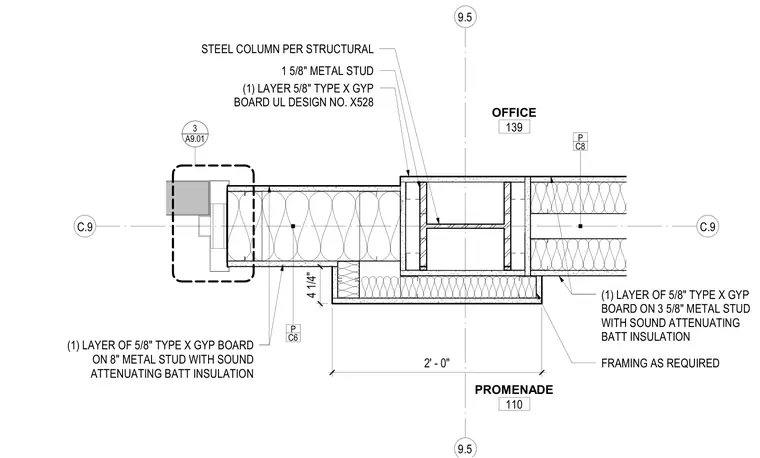

A structural steel column sits at the intersection of metal stud partition walls separating Office 139 and Promenade 110. The column is wrapped with one layer of 5/8 inch Type X gypsum board on a 1 5/8 inch metal stud following UL Design No. X528. One side features an 8 inch metal stud wall with sound attenuating batt insulation and one layer of 5/8 inch Type X gypsum board. The opposing side uses a 3 5/8 inch metal stud wall with sound attenuating batt insulation and one layer of 5/8 inch Type X gypsum board.
9.5 9.5 C.9 C.9 C6 P C8 P 3 A9.01 STEEL COLUMN PER STRUCTURAL FRAMING AS REQUIRED 1 5/8" METAL STUD (1) LAYER 5/8" TYPE X GYP BOARD UL DESIGN NO. X528 4 1/4" 2' - 0" (1) LAYER OF 5/8" TYPE X GYP BOARD ON 3 5/8" METAL STUD WITH SOUND ATTENUATING BATT INSULATION (1) LAYER OF 5/8" TYPE X GYP BOARD ON 8" METAL STUD WITH SOUND ATTENUATING BATT INSULATION OFFICE 139 PROMENADE 110
