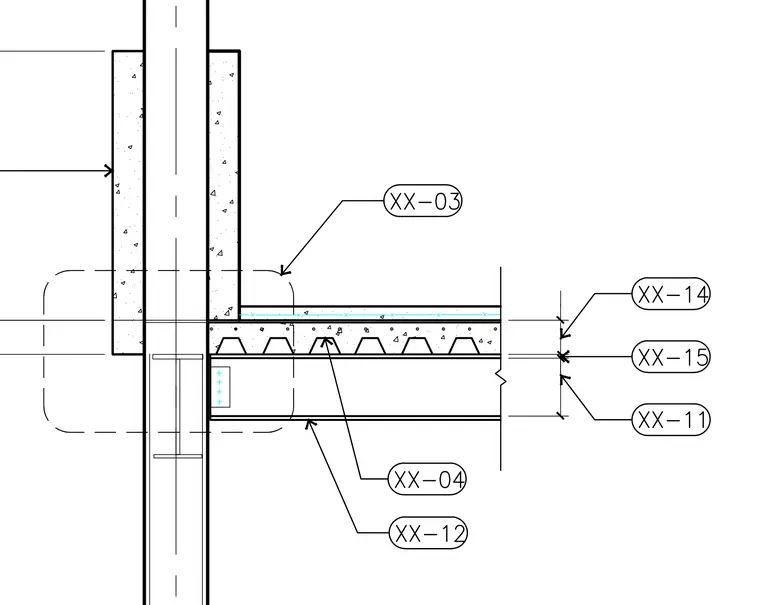

A wide-flange steel floor beam frames into a structural column using a bolted shear tab connection. A metal deck with a concrete topping slab bears across the top flange of the steel beam. A vertical concrete element wraps the exterior column zone. Detail reference bubbles and dimensional markers indicate critical junction clearances and assembly layering.
