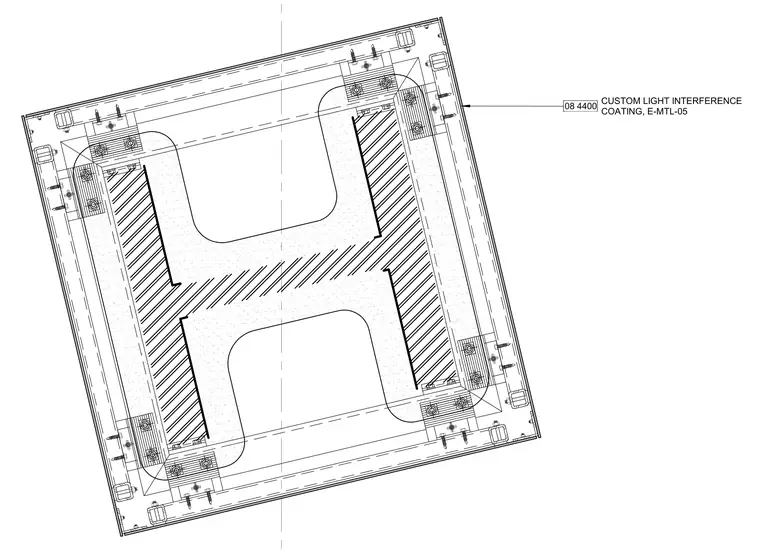

A custom light interference coating is applied to a structural steel column shape with surrounding framing and mechanical attachment clips. The coating bears designation 08 4400 and E-MTL-05 as noted on the drawing callout.
