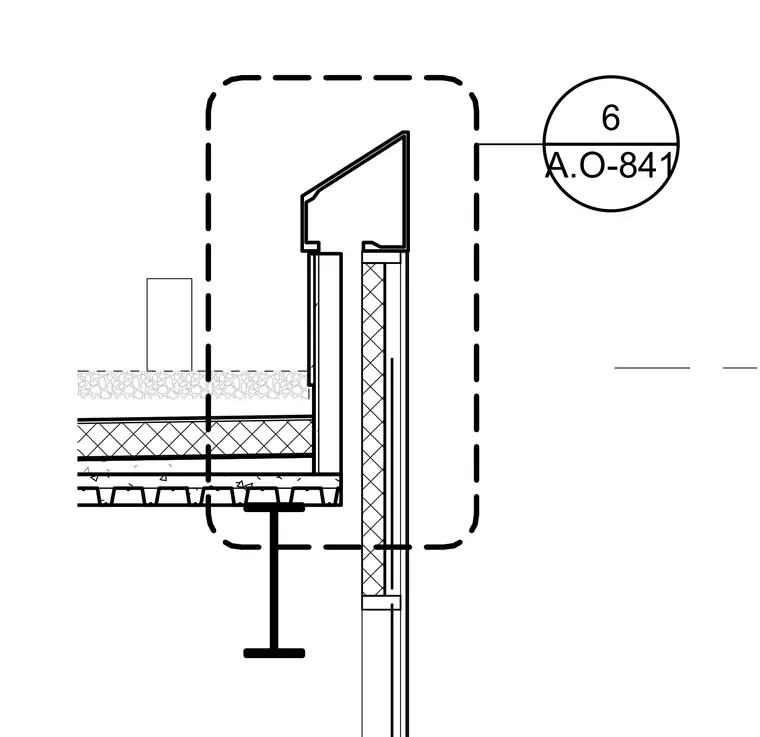

Roof edge detail showing a sloped metal parapet cap flashing terminating above an exterior wall assembly. The roof construction incorporates a steel deck supporting rigid insulation and a finished membrane. An interior stud wall with cavity insulation extends upward to meet the roof structure below the parapet coping.
