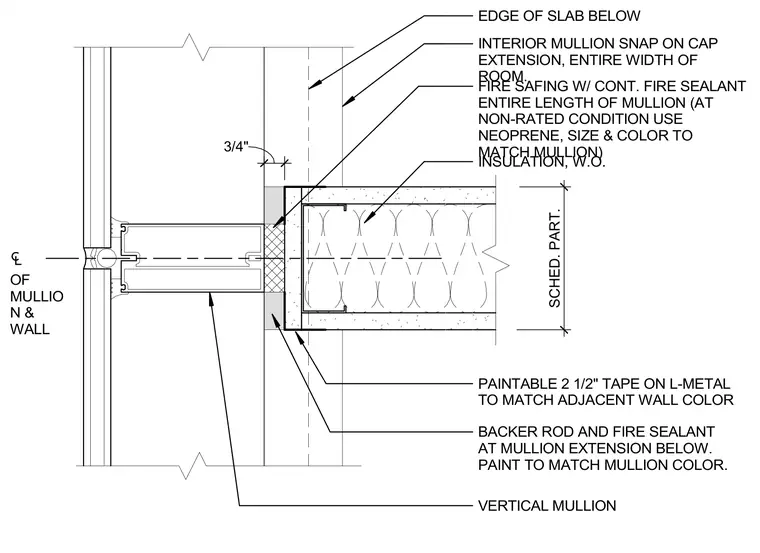

A vertical curtain wall mullion meets an interior partition wall assembly featuring insulation and scheduled partition framing. A three-quarter inch gap between the mullion and partition is sealed with fire safing and continuous fire sealant for rated conditions, or neoprene for non-rated conditions. The connection includes an interior mullion snap-on cap extension spanning the entire width of the room. L-metal with paintable two-and-a-half-inch tape matches the adjacent wall color, and backer rod with fire sealant is applied at the mullion extension below.
PAINTABLE 2 1/2" TAPE ON L-METAL TO MATCH ADJACENT WALL COLOR INSULATION, W.O. VERTICAL MULLION BACKER ROD AND FIRE SEALANT AT MULLION EXTENSION BELOW. PAINT TO MATCH MULLION COLOR. INTERIOR MULLION SNAP ON CAP EXTENSION, ENTIRE WIDTH OF ROOM. EDGE OF SLAB BELOW FIRE SAFING W/ CONT. FIRE SEALANT ENTIRE LENGTH OF MULLION (AT NON-RATED CONDITION USE NEOPRENE, SIZE & COLOR TO MATCH MULLION) OF MULLIO N & WALL SCHED. PART. 3/4"
