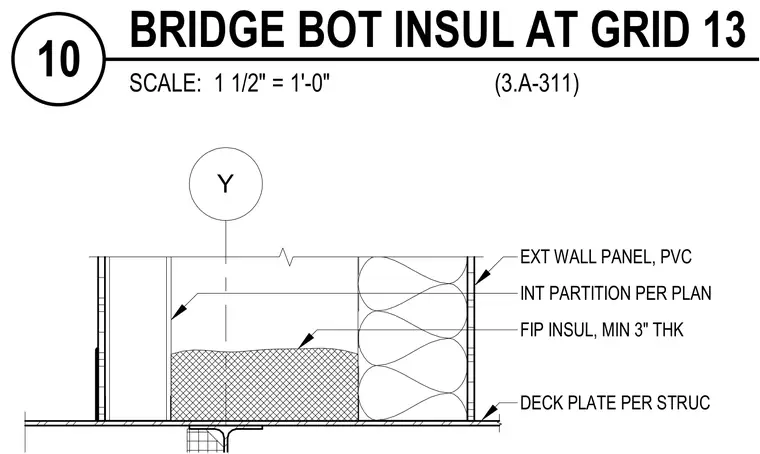

An exterior wall panel with a PVC finish connects adjacent to an interior partition sized per plan. Foil-faced insulation with a minimum thickness of 3 inches fills the cavity above a structural deck plate. The assembly ties into the structural framing per structural engineering requirements at grid line 13.
EXT WALL PANEL, PVC INT PARTITION PER PLAN Y FIP INSUL, MIN 3" THK DECK PLATE PER STRUC SCALE: 1 1/2" = 1'-0" (3.A-311) 10 BRIDGE BOT INSUL AT GRID 13
