Architectural · A-5RBHZ

Wall-Mounted Roller Shade

Materials

Steel Cold-formed Steel Timber / Wood Aluminum Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Windows Storefronts Ceilings Decks Bracing Connections / Plates Roof / Floor Openings

Connections

Bracing Connection

About this detail

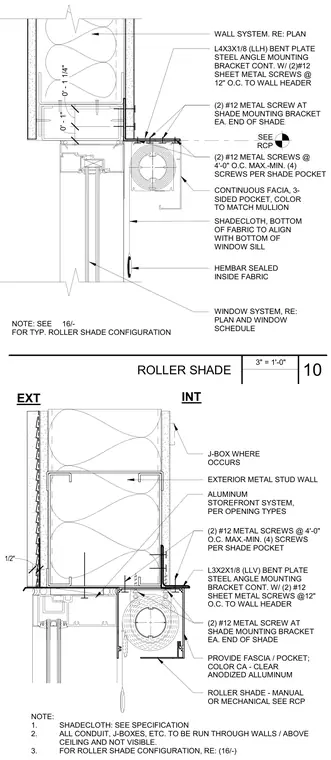

This wall-mounted roller shade assembly integrates with an exterior metal stud wall and aluminum storefront window system. A continuous three-sided aluminum fascia pocket with a clear anodized finish houses the roller shade, supported by L4x3x1/8 or L3x2x1/8 bent plate steel angle mounting brackets attached to the wall header with two number twelve sheet metal screws at twelve inches on center. The shade mechanism is secured with number twelve metal screws at each end and spaced at four feet on center maximum to minimum, with four screws per shade pocket. The shadecloth drops down inside the storefront window system, aligning the bottom of the fabric with the bottom of the window sill, and features a hembar sealed inside the fabric. Electrical conduit and junction boxes are routed through walls and above the ceiling to remain concealed from view.
