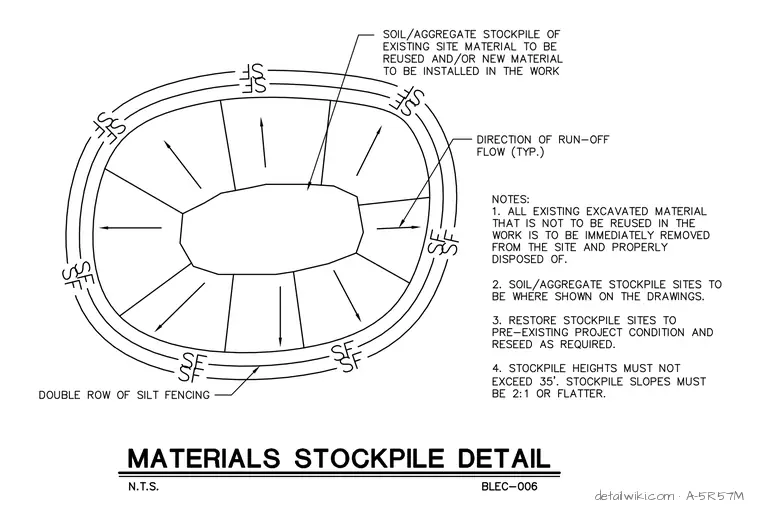

This detail outlines the containment and management of a soil or aggregate stockpile composed of existing site material for reuse or new material for the work. The stockpile perimeter is protected by a double row of silt fencing to control sediment runoff. Arrows indicate the typical direction of run-off flow radiating outward from the pile. Construction notes specify requirements for the immediate removal of excess excavated material, designated stockpile locations, site restoration and reseeding, and maximum stockpile height limits of thirty-five feet with slopes of two-to-one or flatter.
