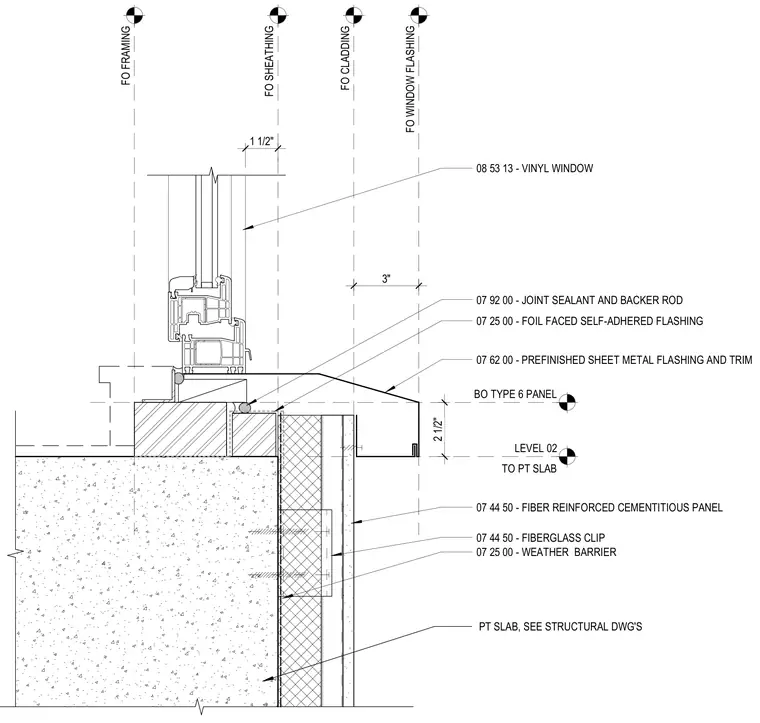

A vinyl window rests on a level-two post-tensioned concrete slab over a weather barrier and foil-faced self-adhered flashing. A prefinished sheet metal flashing and trim slopes outward above the exterior cladding, sealed with joint sealant and a backer rod. The exterior wall below features a fiber-reinforced cementitious panel secured with fiberglass clips and a weather barrier over sheathing. The slab edge condition coordinates directly with structural drawings.
FO SHEATHING BO TYPE 6 PANEL FO CLADDING LEVEL 02 TO PT SLAB 2 1/2" 07 44 50 - FIBER REINFORCED CEMENTITIOUS PANEL 07 25 00 - WEATHER BARRIER PT SLAB, SEE STRUCTURAL DWG'S FO FRAMING FO WINDOW FLASHING 3" 07 62 00 - PREFINISHED SHEET METAL FLASHING AND TRIM 1 1/2" 07 44 50 - FIBERGLASS CLIP 07 92 00 - JOINT SEALANT AND BACKER ROD 07 25 00 - FOIL FACED SELF-ADHERED FLASHING 08 53 13 - VINYL WINDOW
