Wall separation configurations for acoustically insulated partitions and fire-rated partitions use metal studs. The acoustical partition configuration requires a minimum one-foot four-inch separation between offset stud walls. The fire-rated partition configuration requires a minimum two-foot separation with a specialized joint assembly sealed with firestop sealant.

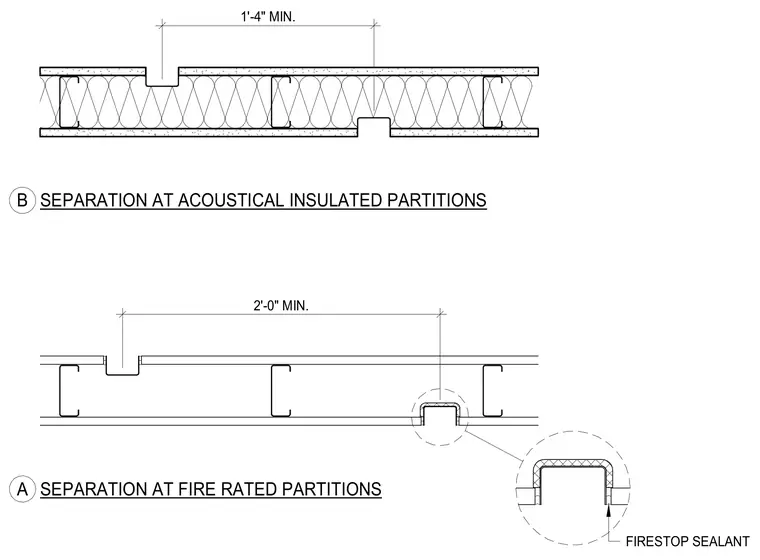

B SEPARATION AT ACOUSTICAL INSULATED PARTITIONS A SEPARATION AT FIRE RATED PARTITIONS 2'-0" MIN. 1'-4" MIN. FIRESTOP SEALANT
