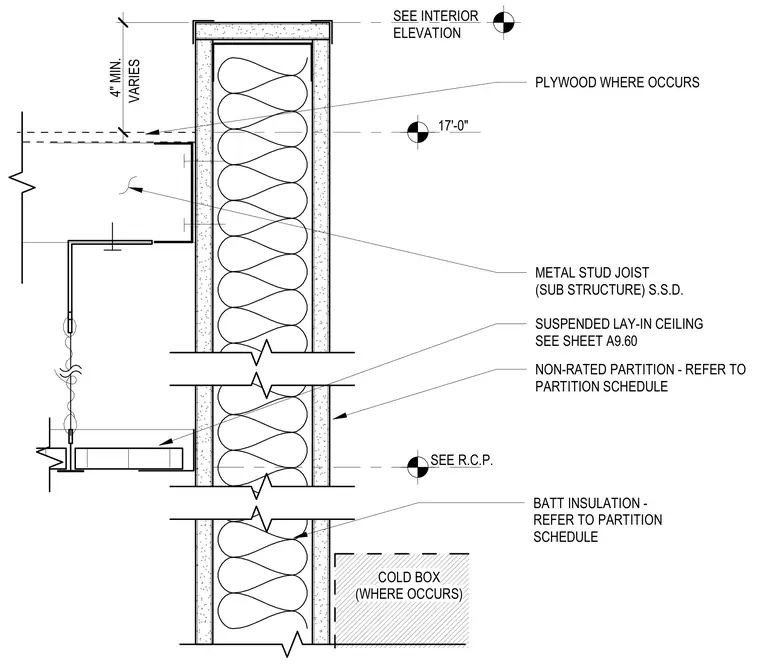

A non-rated interior metal stud partition extends up to meet the underside of the structural sub-framing. Batt insulation fills the cavity between studs, with optional plywood sheathing installed where indicated. A suspended lay-in ceiling intersects the partition at a specified height, referenced to the reflected ceiling plan. A cold box assembly is incorporated at the base condition where applicable.
METAL STUD JOIST (SUB STRUCTURE) S.S.D. NON-RATED PARTITION - REFER TO PARTITION SCHEDULE SUSPENDED LAY-IN CEILING SEE SHEET A9.60 BATT INSULATION - REFER TO PARTITION SCHEDULE PLYWOOD WHERE OCCURS 17'-0" SEE R.C.P. 4" MIN. SEE INTERIOR ELEVATION VARIES COLD BOX (WHERE OCCURS)
