Architectural · A-5Q6KV

Curtain Wall and Shaft Wall Junction at Slab Edge

Materials

Elements

About this detail

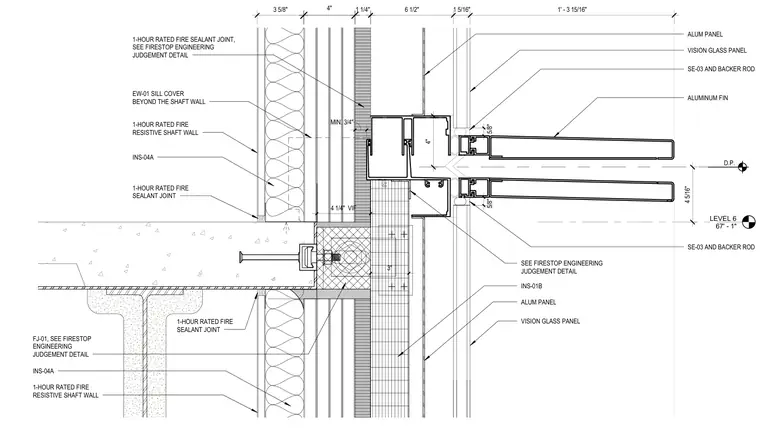

An intersection of a curtain wall and a one-hour-rated fire-resistive shaft wall occurs at a concrete slab edge on Level 6. The assembly incorporates aluminum framing, vision glass panels, aluminum panels, and exterior fins, with specified fire sealant joints and firestop engineering judgements applied at the transitions. Insulation layers including INS-01B and INS-04A are integrated within the wall cavities, and an EW-01 sill cover extends beyond the shaft wall. The connection utilizes backer rods, sealants, and embeds coordinated with the slab edge condition.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
