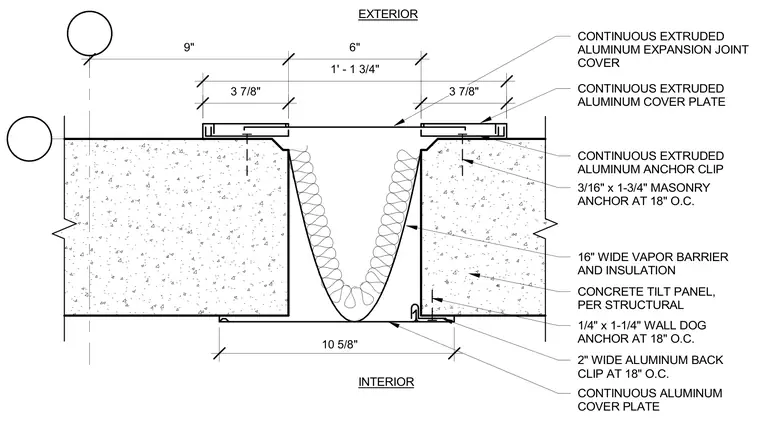

An exterior expansion joint assembly between two concrete tilt-up wall panels, structured per structural engineering requirements. A continuous extruded aluminum expansion joint cover spans the exterior gap, accompanied by continuous extruded aluminum cover plates secured with 3/16-inch by 1-3/4-inch masonry anchors at 18 inches on center and continuous extruded aluminum anchor clips. The joint opening incorporates a 16-inch wide vapor barrier and insulation loop. The interior side is finished with a continuous aluminum cover plate secured by 2-inch wide aluminum back clips and 1/4-inch by 1-1/4-inch wall dog anchors spaced at 18 inches on center.
9" 6" EXTERIOR INTERIOR CONCRETE TILT PANEL, PER STRUCTURAL CONTINUOUS EXTRUDED ALUMINUM EXPANSION JOINT COVER 1' - 1 3/4" 3 7/8" 3 7/8" CONTINUOUS EXTRUDED ALUMINUM COVER PLATE 3/16" x 1-3/4" MASONRY ANCHOR AT 18" O.C. CONTINUOUS EXTRUDED ALUMINUM ANCHOR CLIP 16" WIDE VAPOR BARRIER AND INSULATION 2" WIDE ALUMINUM BACK CLIP AT 18" O.C. 10 5/8" 1/4" x 1-1/4" WALL DOG ANCHOR AT 18" O.C. CONTINUOUS ALUMINUM COVER PLATE
