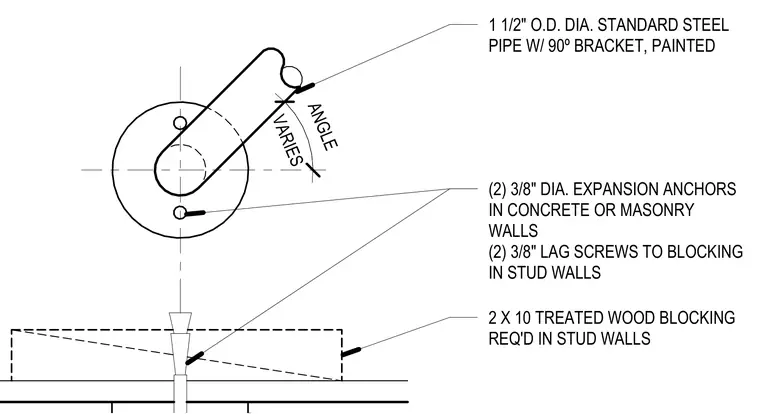

A 1-1/2 inch outside diameter standard painted steel pipe handrail terminates with a 90-degree bracket set at a variable angle. The bracket mounts to the wall using two 3/8-inch diameter expansion anchors for concrete or masonry walls, or two 3/8-inch lag screws secured to 2x10 treated wood blocking required within stud walls.
(2) 3/8" DIA. EXPANSION ANCHORS IN CONCRETE OR MASONRY WALLS (2) 3/8" LAG SCREWS TO BLOCKING IN STUD WALLS 2 X 10 TREATED WOOD BLOCKING REQ'D IN STUD WALLS 1 1/2" O.D. DIA. STANDARD STEEL PIPE W/ 90º BRACKET, PAINTED VARIES ANGLE
