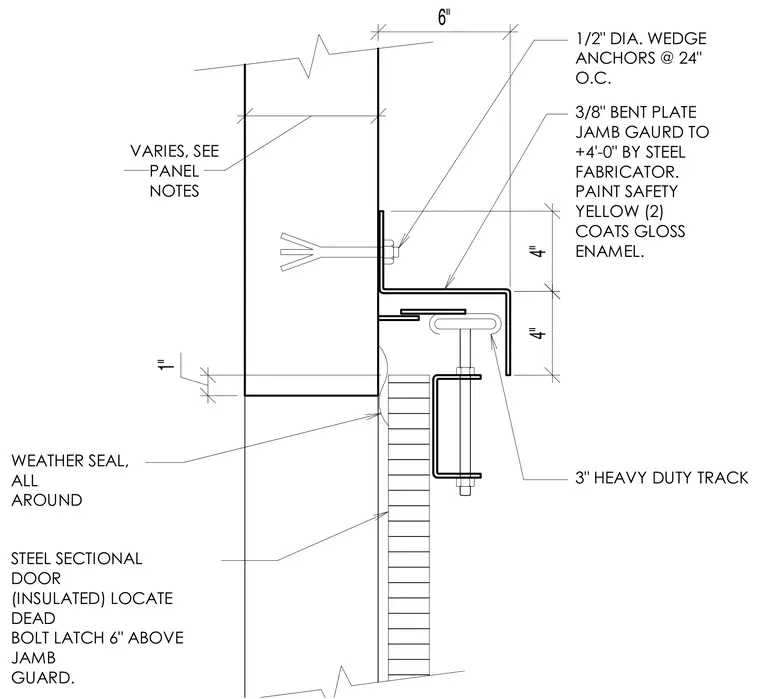

A three-eighths-inch bent plate jamb guard extends to plus four feet zero inches and is secured with one-half-inch diameter wedge anchors spaced at twenty-four inches on center. The jamb guard is painted with two coats of safety yellow gloss enamel and receives a three-inch heavy-duty track for an insulated steel sectional door. A dead bolt latch is located six inches above the jamb guard. Continuous weather seal is provided all around.
VARIES, SEE PANEL NOTES 1" 4" 4" 6" 1/2" DIA. WEDGE ANCHORS @ 24" O.C. 3/8" BENT PLATE JAMB GAURD TO +4'-0" BY STEEL FABRICATOR. PAINT SAFETY YELLOW (2) COATS GLOSS ENAMEL. 3" HEAVY DUTY TRACK STEEL SECTIONAL DOOR (INSULATED) LOCATE DEAD BOLT LATCH 6" ABOVE JAMB GUARD. WEATHER SEAL, ALL AROUND
