An interior hollow metal door frame is tied to surrounding metal stud framing spaced at 16 inches on center with 16-gauge Z-clips secured by two number 10 sheet metal screws. The assembly incorporates a three-and-five-eighths-inch by 16-gauge box header fastened with number 8 sheet metal screws at 12 inches on center on each stud leg and two inches maximum from each end. Wall surfaces are finished with five-eighths-inch Type X gypsum board on each side.

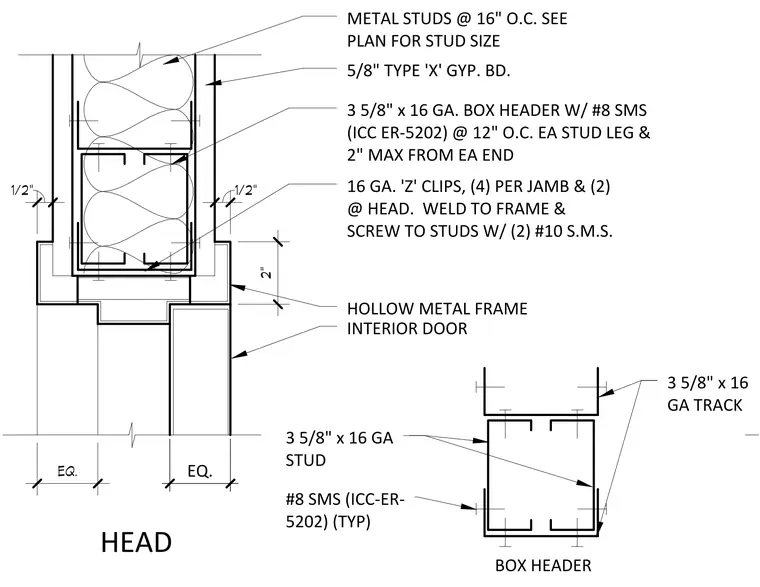

EQ. EQ. 2" 1/2" 1/2" METAL STUDS @ 16" O.C. SEE PLAN FOR STUD SIZE 5/8" TYPE 'X' GYP. BD. 16 GA. 'Z' CLIPS, (4) PER JAMB & (2) @ HEAD. WELD TO FRAME & SCREW TO STUDS W/ (2) #10 S.M.S. HOLLOW METAL FRAME INTERIOR DOOR 3 5/8" x 16 GA. BOX HEADER W/ #8 SMS (ICC ER‐5202) @ 12" O.C. EA STUD LEG & 2" MAX FROM EA END HEAD 3 5/8" x 16 GA TRACK 3 5/8" x 16 GA STUD #8 SMS (ICC‐ER‐ 5202) (TYP) BOX HEADER
