Exterior Wall Base with Stucco and Concrete Curb

Materials

Concrete Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Walls Floors / Slabs Waterproofing / Flashing Insulation Drainage Site / Paving

About this detail

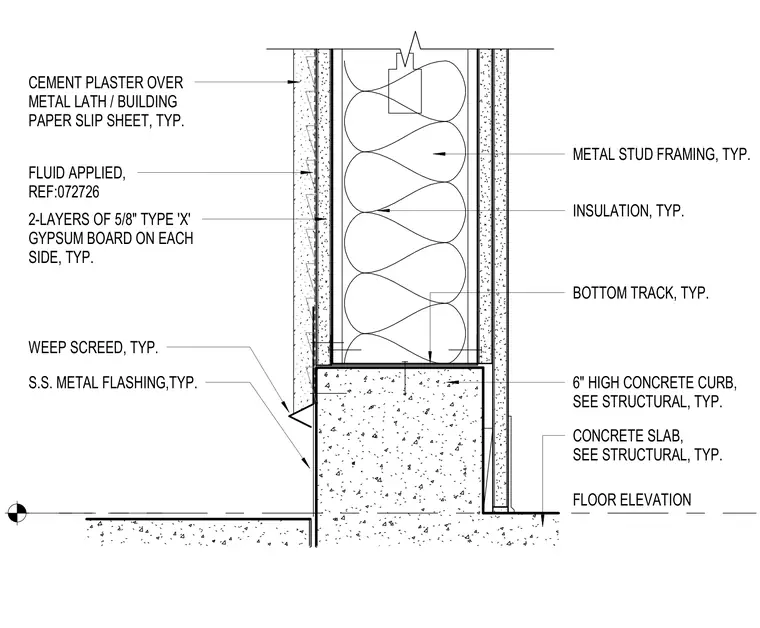

The exterior assembly consists of cement plaster over metal lath and building paper slip sheet applied over a fluid-applied air barrier and two layers of 5/8-inch Type X gypsum board on each side of cold-formed metal stud framing with internal insulation. The wall terminates at a 6-inch high concrete curb supported by the concrete slab. A stainless steel metal flashing and weep screed are integrated at the base of the plaster finish to manage moisture drainage above the floor elevation.
