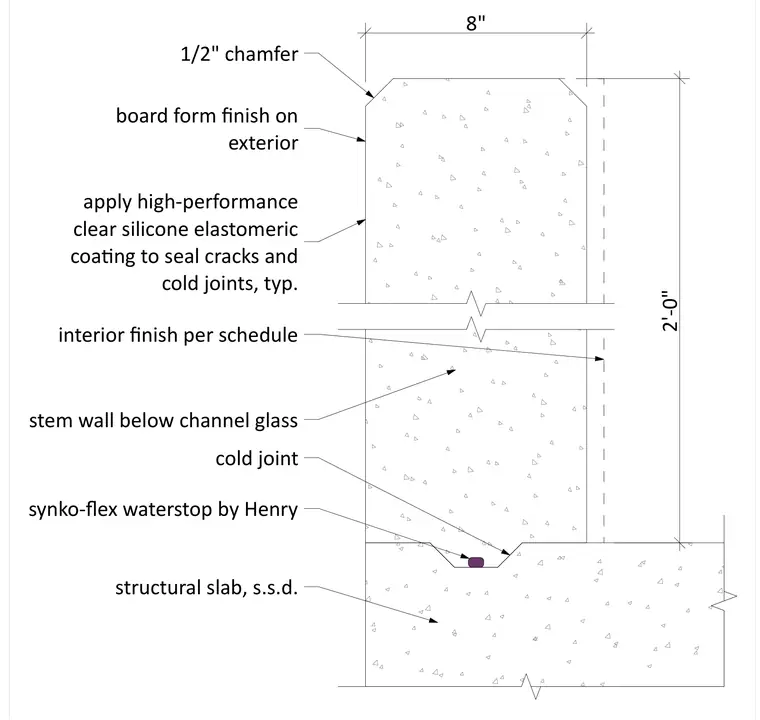

An eight-inch concrete stem wall bears upon a structural slab with a cold joint detailed at the connection. A Synko-Flex waterstop by Henry is embedded within the cold joint to prevent moisture infiltration. The exterior face receives a board-form finish and a half-inch chamfer at the top corner, with a high-performance clear silicone elastomeric coating applied to seal cracks and cold joints typically. The interior face accommodates a finish specified per schedule below channel glass.
8" 2'-0" structural slab, s.s.d. cold joint stem wall below channel glass board form finish on exterior 1/2" chamfer synko-flex waterstop by Henry interior finish per schedule apply high-performance clear silicone elastomeric coa Ɵng to seal cracks and cold joints, typ.
