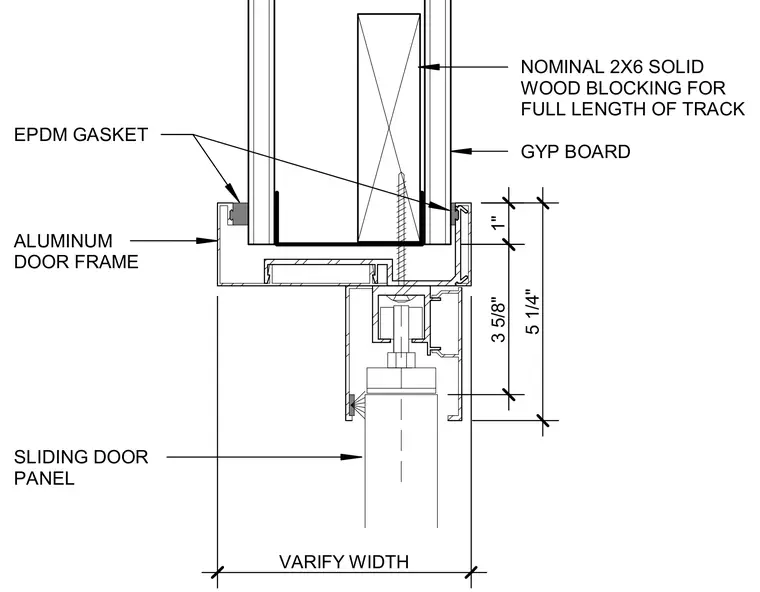

An aluminum door frame integrates with surrounding gypsum board walls over a nominal 2x6 solid wood blocking running the full length of the track. EPDM gaskets line the aluminum frame sections for acoustic or weather sealing. The sliding door panel hangs from a track concealed within the aluminum framing assembly.
EPDM GASKET GYP BOARD NOMINAL 2X6 SOLID WOOD BLOCKING FOR FULL LENGTH OF TRACK SLIDING DOOR PANEL ALUMINUM DOOR FRAME VARIFY WIDTH 1" 3 5/8" 5 1/4"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
