A custom base cabinet assembly is supported on a two-by fire-treated wood base frame cut to the height of the scheduled base, with shims placed at the base as required to level. The cabinet incorporates one large drawer and a microwave shelf, with countertops and backsplash installed as scheduled. Shims are placed at the top and bottom as required against a backing plate SSD, with typical one-inch vertical spacings indicated.

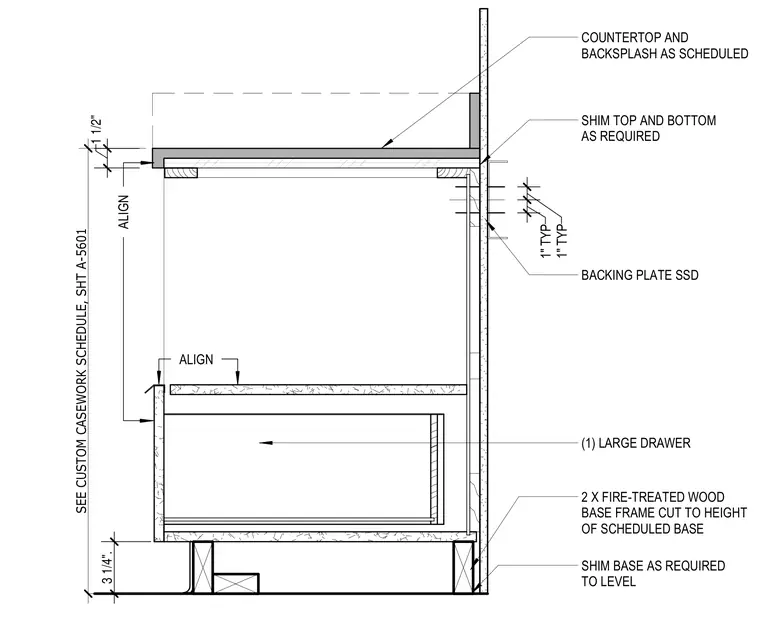

COUNTERTOP AND BACKSPLASH AS SCHEDULED (1) LARGE DRAWER SEE CUSTOM CASEWORK SCHEDULE, SHT A-5601 BACKING PLATE SSD SHIM TOP AND BOTTOM AS REQUIRED 1" TYP 1" TYP 2 X FIRE-TREATED WOOD BASE FRAME CUT TO HEIGHT OF SCHEDULED BASE SHIM BASE AS REQUIRED TO LEVEL ALIGN 1 1/2" 3 1/4". ALIGN
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
