Architectural · A-5PEZY

Floor Level Sign

Elements

About this detail

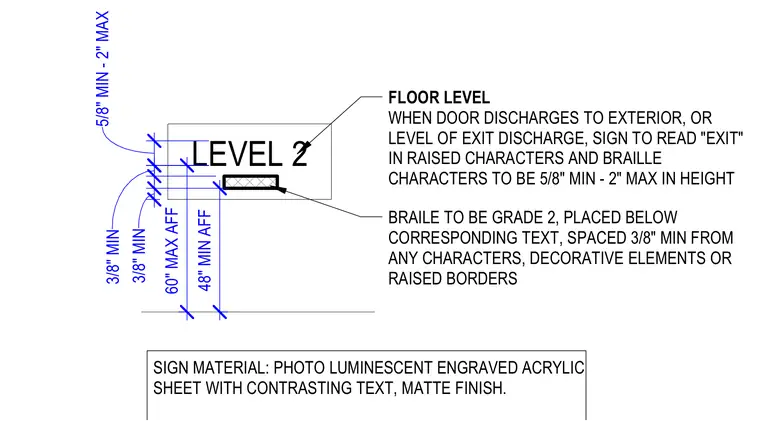

The photoluminescent engraved acrylic sheet sign features contrasting text with a matte finish and includes raised and Grade 2 braille characters. Character height ranges from five-eighths of an inch minimum to two inches maximum. Braille is placed below the corresponding text and spaced three-eighths of an inch minimum from any characters, decorative elements, or raised borders. The installation height ranges from forty-eight inches minimum to sixty inches maximum above the finished floor to the centerline of the sign. This sign is required at floor levels when a door discharges to the exterior or at the level of exit discharge.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
