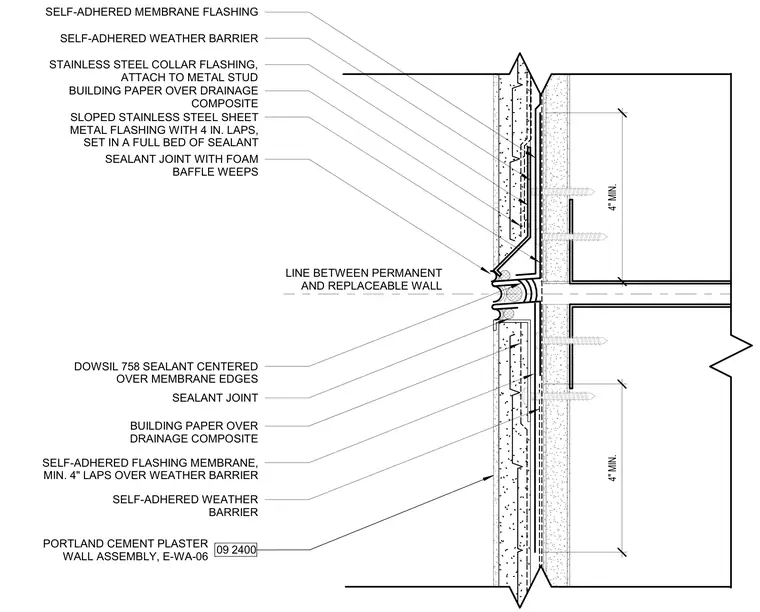

A sloped stainless steel sheet metal flashing with four-inch laps is set in a full bed of sealant and attached to metal studs. A stainless steel collar flashing is installed at the line dividing the permanent and replaceable wall. The assembly integrates self-adhered membrane flashing over self-adhered weather barriers and building paper over a drainage composite. A sealant joint with foam baffle weeps and Dowsil 758 sealant centered over membrane edges is provided at the exterior joint. The Portland cement plaster wall assembly completes the exterior finish.
SEALANT JOINT LINE BETWEEN PERMANENT AND REPLACEABLE WALL STAINLESS STEEL COLLAR FLASHING, ATTACH TO METAL STUD SLOPED STAINLESS STEEL SHEET METAL FLASHING WITH 4 IN. LAPS, SET IN A FULL BED OF SEALANT SELF-ADHERED MEMBRANE FLASHING SELF-ADHERED WEATHER BARRIER BUILDING PAPER OVER DRAINAGE COMPOSITE SELF-ADHERED FLASHING MEMBRANE, MIN. 4" LAPS OVER WEATHER BARRIER SELF-ADHERED WEATHER BARRIER BUILDING PAPER OVER DRAINAGE COMPOSITE 09 2400 PORTLAND CEMENT PLASTER WALL ASSEMBLY, E-WA-06 SEALANT JOINT WITH FOAM BAFFLE WEEPS DOWSIL 758 SEALANT CENTERED OVER MEMBRANE EDGES 4" MIN. 4" MIN.
