Architectural · A-5P275

Hollow Metal Door Frame Profile Detail

Materials

Elements

About this detail

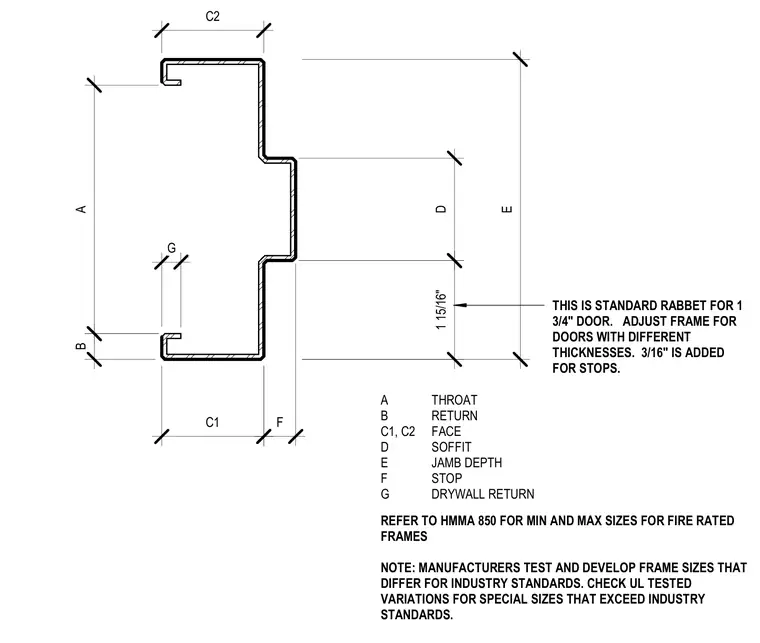

Standard dimensions and geometry for a 1 3/4 inch door rabbet with drywall return appear in this hollow metal frame profile. Key profile components include the throat, return, face, soffit, jamb depth, stop, and drywall return. The standard rabbet measures 1 15/16 inches with an additional 3/16 inch added for stops. Manufacturer dimensions must be verified against HMMA 850 and UL tested variations for fire-rated frames and special sizes exceeding industry standards.
