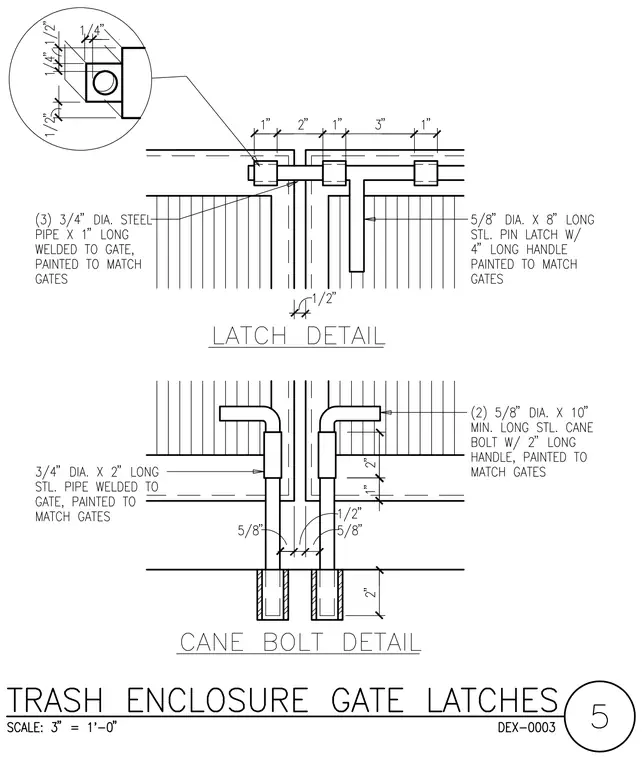

The upper assembly comprises a slide bolt mechanism with a five-eighths inch diameter by eight inches long steel pin latch featuring a four inch long handle, sliding through three three-quarters inch diameter by one inch long steel pipe guides welded to the gate and painted to match. The lower assembly consists of two five-eighths inch diameter by ten inches minimum length steel cane bolts with two inch long handles, sliding through three-quarters inch diameter by two inches long steel pipe guides welded to the gate and dropping into floor sockets. Both assemblies are painted to match the gates and include detailed dimensioning for bracket placements and edge clearances.
