Architectural · A-5NQMF

Fire Extinguisher Cabinet

Materials

Elements

Partitions Insulation Millwork / Casework Roof / Floor Openings

About this detail

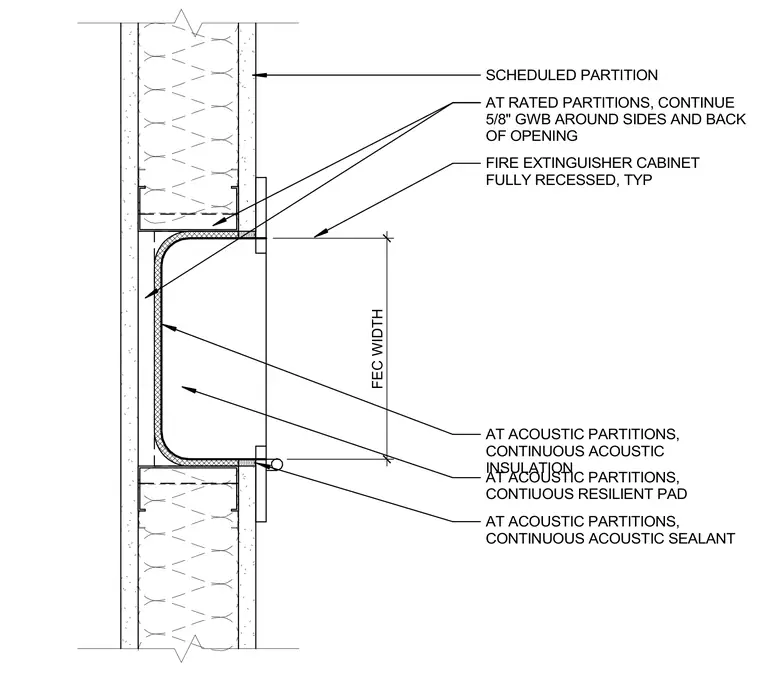

A fully recessed fire extinguisher cabinet is installed within a scheduled gypsum wallboard partition. At rated partitions, five-eighths-inch gypsum wallboard continues around the sides and back of the opening. At acoustic partitions, continuous acoustic insulation, a continuous resilient pad, and continuous acoustic sealant are provided around the assembly.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
