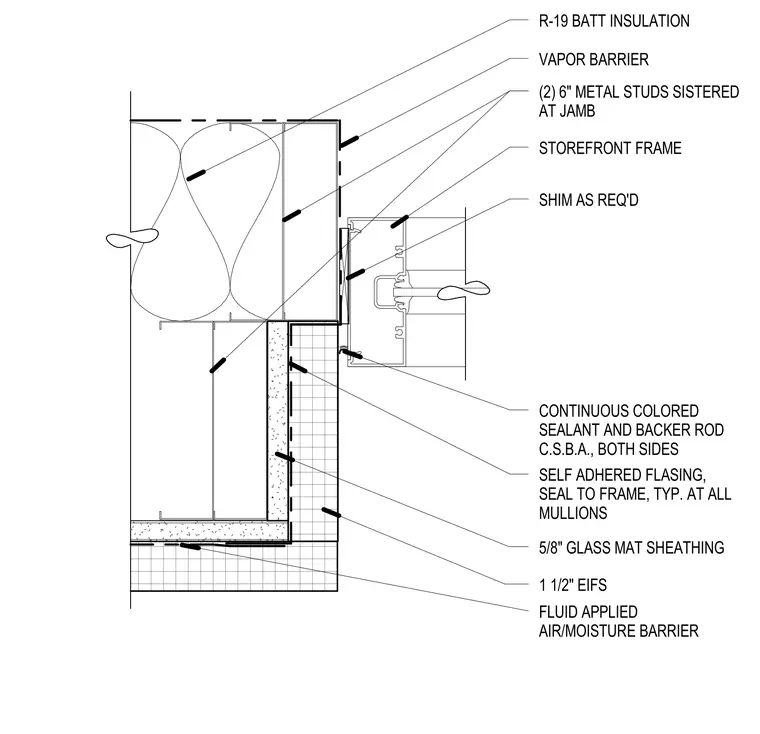

This aluminum storefront window jamb assembly ties into a cold-formed steel stud backup wall with two six-inch metal studs sistered at the jamb. The storefront frame is set with shims as required and sealed at the perimeter with a continuous colored sealant and backer rod on both sides. The wall assembly incorporates five-eighths-inch glass mat gypsum sheathing over a fluid-applied air and moisture barrier, insulated with R-nineteen batt insulation and a vapor barrier on the interior side. Exterior finish consists of one and one-half-inch exterior insulation and finish system with self-adhered flashing sealed to the frame typically at all mullions.
CONTINUOUS COLORED SEALANT AND BACKER ROD C.S.B.A., BOTH SIDES STOREFRONT FRAME SHIM AS REQ'D (2) 6" METAL STUDS SISTERED AT JAMB FLUID APPLIED AIR/MOISTURE BARRIER R-19 BATT INSULATION 5/8" GLASS MAT SHEATHING SELF ADHERED FLASING, SEAL TO FRAME, TYP. AT ALL MULLIONS 1 1/2" EIFS VAPOR BARRIER
