Architectural · A-5NH6Y

Wall-Mounted Steel Pipe Handrail Detail

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Railings / Guards Bracing Anchors / Embeds Connections / Plates

Connections

Bracing Connection Welded Connection

About this detail

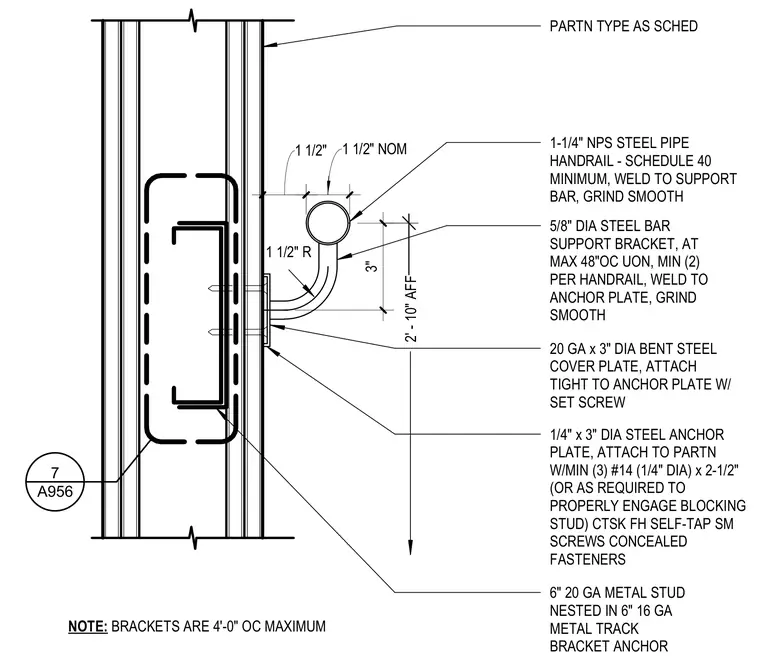

A 1-1/4 inch NPS Schedule 40 minimum steel pipe handrail mounts to a partition at 2 feet 10 inches above finished floor. The handrail welds to a 5/8 inch diameter steel bar support bracket with welds ground smooth. Support brackets space at a maximum of 48 inches on center with a minimum of two per handrail, and weld to a 1/4 inch by 3 inch diameter steel anchor plate. The anchor plate attaches to the partition using a minimum of three #14 by 2-1/2 inch countersunk flat head self-tapping sheet metal screws to engage the blocking stud. A 20 gauge by 3 inch diameter bent steel cover plate conceals the fasteners and attaches tight to the anchor plate with a set screw. The partition backing consists of a 6 inch 20 gauge metal stud nested in a 6 inch 16 gauge metal track bracket anchor.
