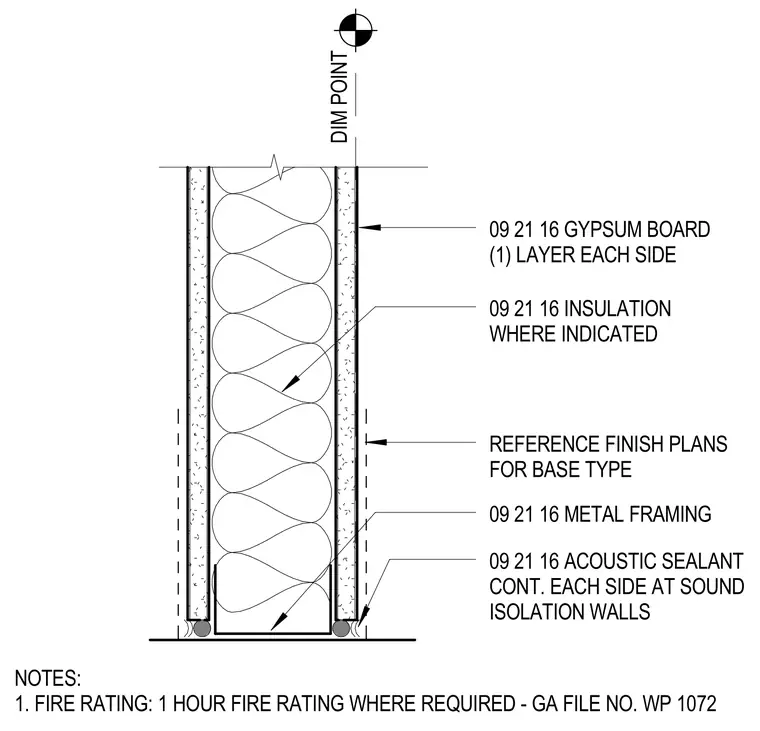

This assembly consists of metal framing studs finished with one layer of gypsum board on each side. Insulation is installed within the cavity where indicated. Continuous acoustic sealant is applied at each side at sound isolation walls. Base types are referenced from finish plans. The partition achieves a one-hour fire rating where required per Gypsum Association file number WP 1072.
DIM POINT NOTES: 1. FIRE RATING: 1 HOUR FIRE RATING WHERE REQUIRED - GA FILE NO. WP 1072 09 21 16 INSULATION WHERE INDICATED 09 21 16 ACOUSTIC SEALANT CONT. EACH SIDE AT SOUND ISOLATION WALLS REFERENCE FINISH PLANS FOR BASE TYPE 09 21 16 GYPSUM BOARD (1) LAYER EACH SIDE 09 21 16 METAL FRAMING
