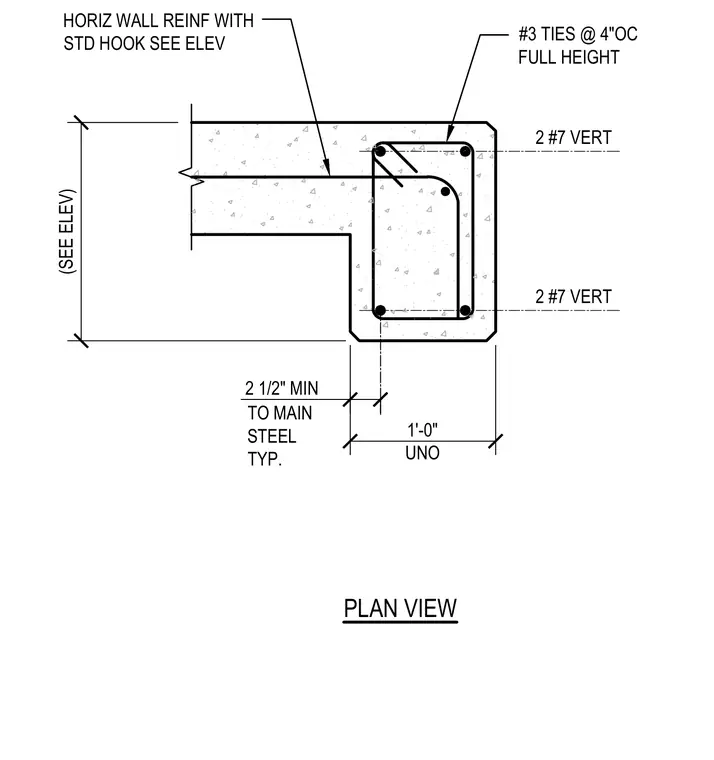

This plan detail shows a reinforced concrete wall corner with two number seven vertical bars positioned at each corner layer and a minimum two and one-half inch clearance to the main steel typically. Three number three ties spaced at four inches on center run full height around the vertical reinforcement. Horizontal wall reinforcement features standard hooks as specified in elevations.
(SEE ELEV) 1'-0" UNO 2 #7 VERT 2 1/2" MIN TO MAIN STEEL TYP. #3 TIES @ 4"OC FULL HEIGHT HORIZ WALL REINF WITH STD HOOK SEE ELEV 2 #7 VERT PLAN VIEW
