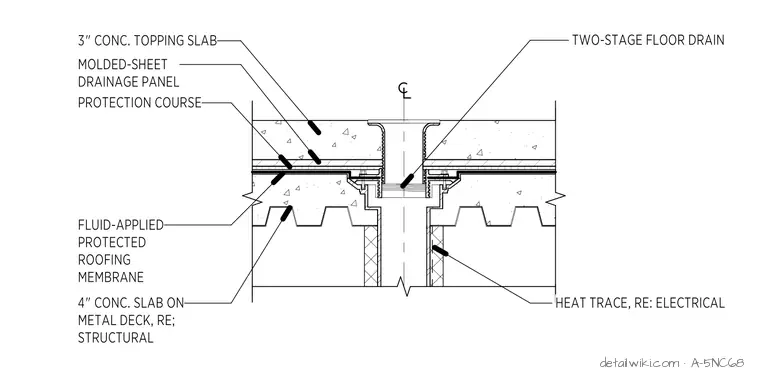

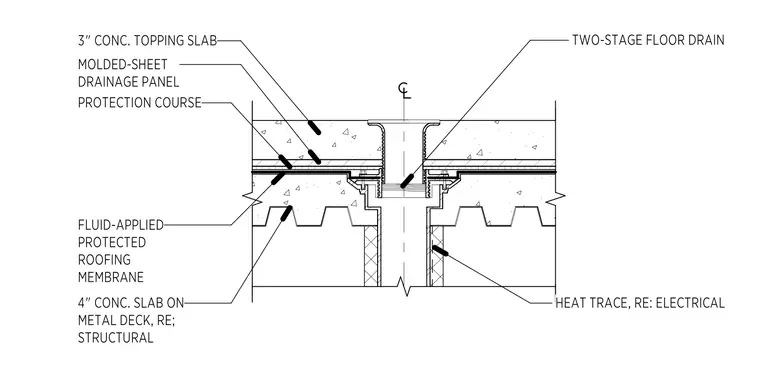

This assembly features a two-stage floor drain installed within a three-inch concrete topping slab. The drain sits atop a molded-sheet drainage panel and a protection course, which overlay a fluid-applied protected roofing membrane. The primary structural support is a four-inch concrete slab on metal deck. A heat trace is provided at the drain pipe, as referenced by the electrical discipline.
