A hollow metal frame is centered on the wall and grouted solid within a masonry partition. The frame depth is scheduled per the door schedule. A masonry anchor secures the frame into the concrete or masonry wall assembly.

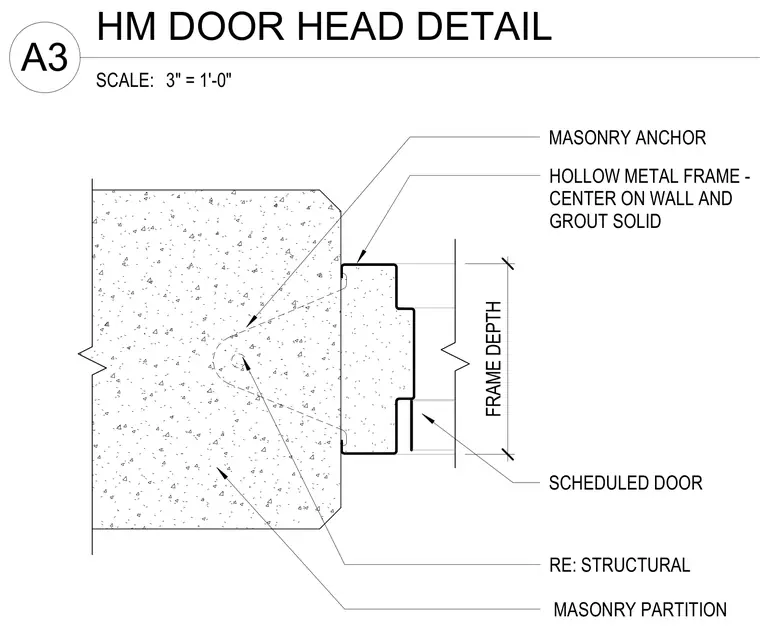

HOLLOW METAL FRAME - CENTER ON WALL AND GROUT SOLID MASONRY ANCHOR FRAME DEPTH SCHEDULED DOOR RE: STRUCTURAL MASONRY PARTITION SCALE: 3" = 1'-0" A3 HM DOOR HEAD DETAIL
