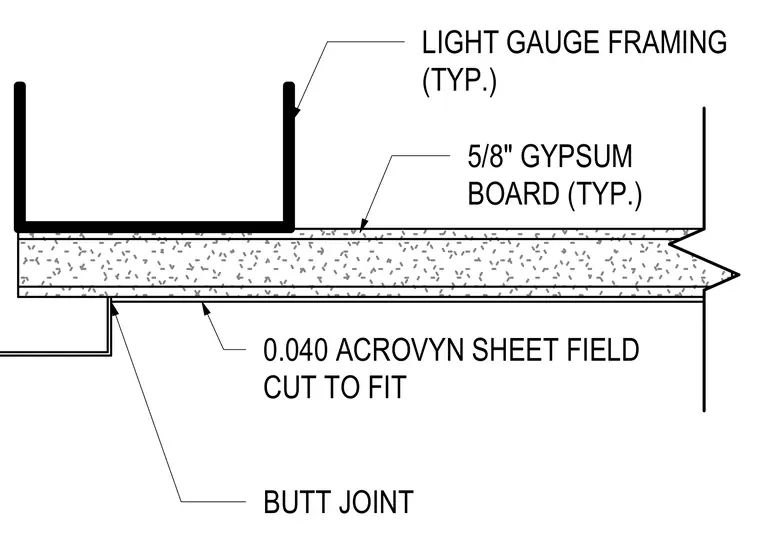

An end condition for a crash rail features light gauge steel framing surfaced with five-eighths inch gypsum board typically. A zero-point-zero-four-zero-inch Acrovyn sheet is field cut to fit over the wall assembly and meets at a butt joint.
BUTT JOINT 0.040 ACROVYN SHEET FIELD CUT TO FIT LIGHT GAUGE FRAMING (TYP.) 5/8" GYPSUM BOARD (TYP.)
