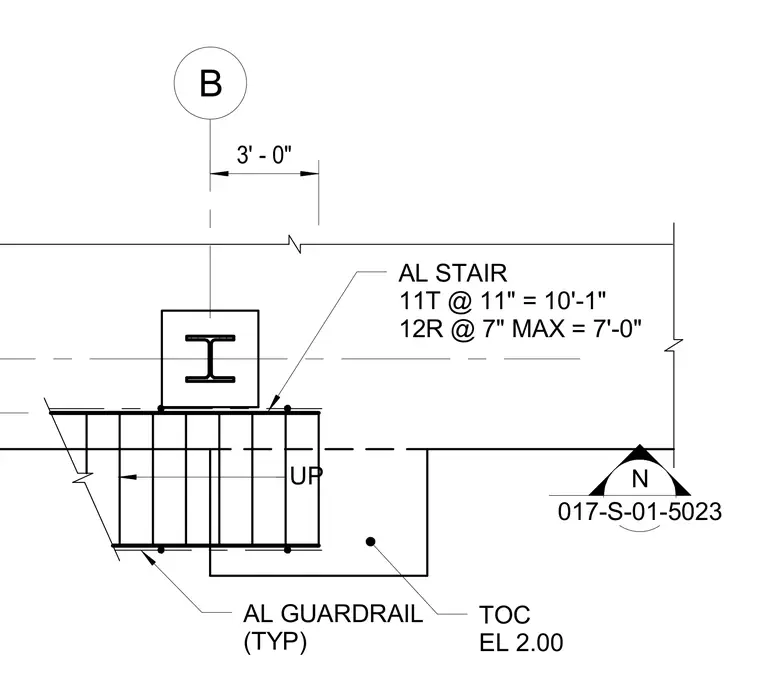

An aluminum stair features treads spaced at eleven inches for a total run of ten feet one inch and risers at a maximum height of seven inches. Typical aluminum guardrails bound the stair assembly adjacent to structural framing and elevation markers.
UP 3' - 0" B AL STAIR 11T @ 11" = 10'-1" 12R @ 7" MAX = 7'-0" TOC EL 2.00 N 017-S-01-5023 AL GUARDRAIL (TYP)
