A continuous twenty-gauge minimum three-inch deep leg deflection track is attached to the underside of the fluted steel deck at twelve inches on center maximum with powder-driven fasteners. Gypsum board and studs remain unattached to the deflection track in the specified clearance area to allow structural movement. Continuous two-inch wide by twenty-gauge metal straps provide top attachment for the studs. When the partition aligns at a deck flute recess, a six-inch by ten-inch by twenty-gauge metal plate is provided contiguous with the partition and secured to the deck with powder-driven fasteners at the same spacing required for the partition top track. A line of ceiling finishes as scheduled intersects the partition below.

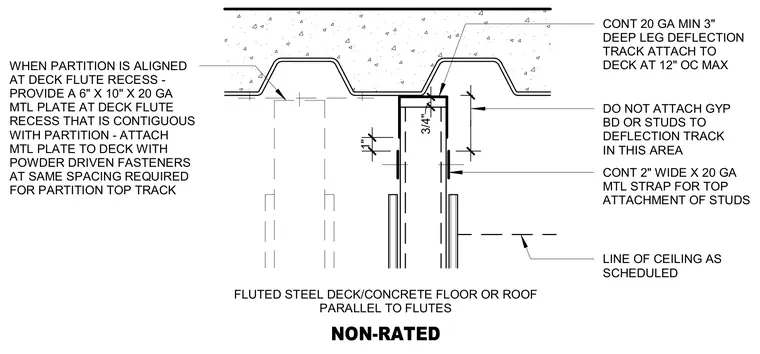

1" LINE OF CEILING AS SCHEDULED CONT 2" WIDE X 20 GA MTL STRAP FOR TOP ATTACHMENT OF STUDS DO NOT ATTACH GYP BD OR STUDS TO DEFLECTION TRACK IN THIS AREA CONT 20 GA MIN 3" DEEP LEG DEFLECTION TRACK ATTACH TO DECK AT 12" OC MAX WHEN PARTITION IS ALIGNED AT DECK FLUTE RECESS - PROVIDE A 6" X 10" X 20 GA MTL PLATE AT DECK FLUTE RECESS THAT IS CONTIGUOUS WITH PARTITION - ATTACH MTL PLATE TO DECK WITH POWDER DRIVEN FASTENERS AT SAME SPACING REQUIRED FOR PARTITION TOP TRACK NON-RATED FLUTED STEEL DECK/CONCRETE FLOOR OR ROOF PARALLEL TO FLUTES 3/4" _
