Architectural · A-5M9A4

Double Stud Plumbing Wall Detail

Materials

Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Beams Walls Ceilings Floors / Slabs Insulation

About this detail

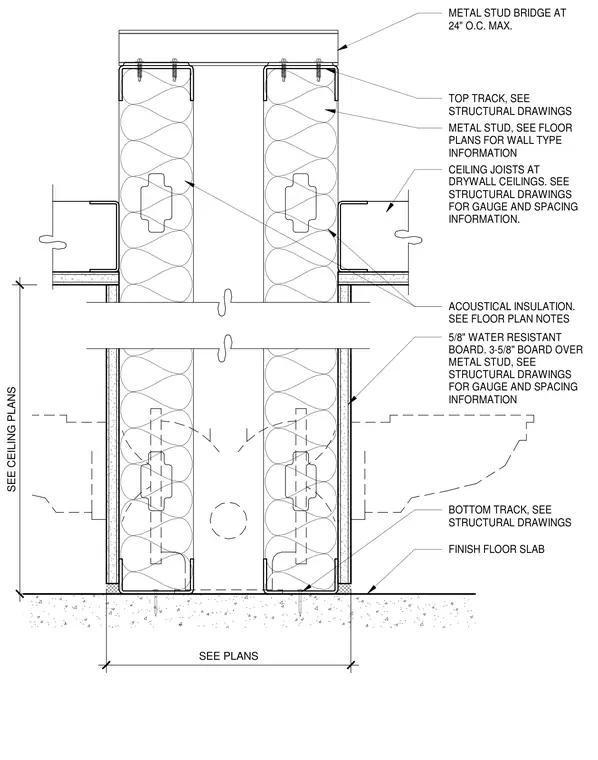

This double stud wall assembly consists of 3-5/8 inch cold-formed steel studs set into top and bottom tracks with gauge and spacing sized per structural drawings. The parallel stud walls create a chase for plumbing and services, bridged at the top at a maximum of 24 inches on center. Acoustical insulation fills the cavity between the framing members. Each side of the partition is finished with 5/8 inch water-resistant gypsum board, secured over the metal studs. Ceiling joists intersect the partition at drywall ceilings, with framing detailed per structural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
