Architectural · A-5M2E6

Industrial Ladder Side Elevation and Structural Support Connection

Materials

Steel Glass / Glazing

Elements

Columns Beams Connections / Plates

Connections

HSS Connection Bolted Connection

About this detail

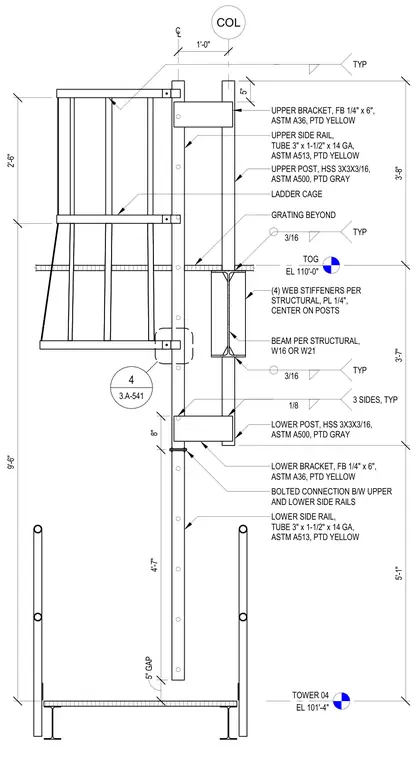

An industrial ladder assembly is mounted to structural steel framing, comprising an upper post and lower post made from 3-inch by 3-inch by 3/16-inch hollow structural section steel tubing conforming to ASTM A500 and painted gray. The upper side rails and lower side rails consist of 3-inch by 1-1/2-inch by 14 gauge steel tubes conforming to ASTM A513 and painted yellow, connected together by a bolted joint. Upper and lower brackets fabricated from 1/4-inch by 6-inch flat bar conforming to ASTM A36 and painted yellow secure the ladder posts back to the structure. A ladder cage is integrated into the upper assembly, situated near the structural beam operating at elevation 110'-0" with four 1/4-inch web stiffeners centered on the posts. Fillet welds of 3/16-inch and 1/8-inch sizes are specified at structural connections.
