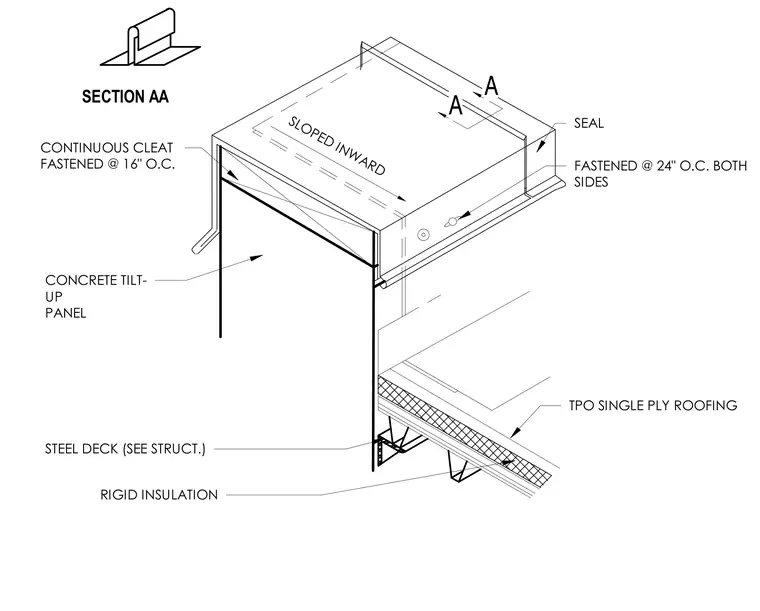

A sloped-inward metal coping cap is secured with a continuous cleat fastened at sixteen inches on center along the outer face in this isometric parapet cap flashing assembly terminating at a concrete tilt-up wall and steel deck roof structure. Single-ply thermoplastic polyolefin roofing membrane extends across the assembly, with edge seals fastened at twenty-four inches on center on both sides over rigid insulation. A structural steel deck bears below the roof insulation layer as specified in the structural drawings.
SEAL TPO SINGLE PLY ROOFING FASTENED @ 24" O.C. BOTH SIDES RIGID INSULATION A A SLOPED INWARD CONTINUOUS CLEAT FASTENED @ 16" O.C. SECTION AA STEEL DECK (SEE STRUCT.) CONCRETE TILT- UP PANEL
